MINI ADA 3

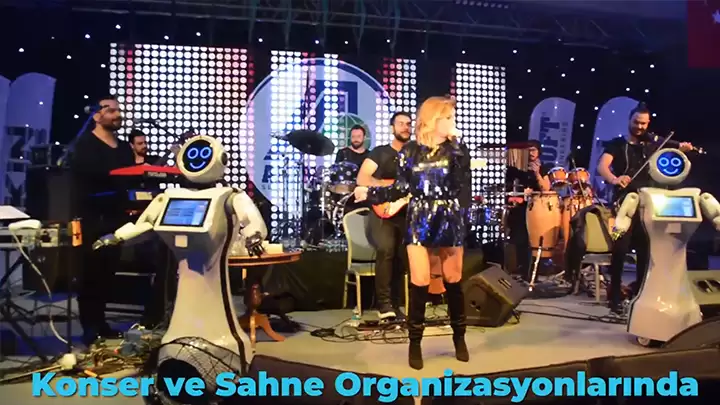

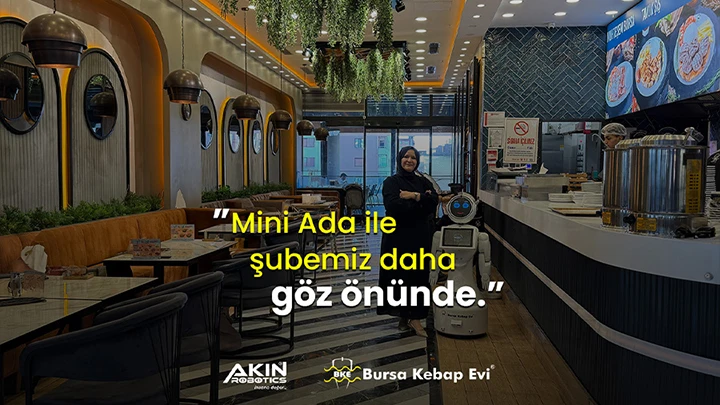

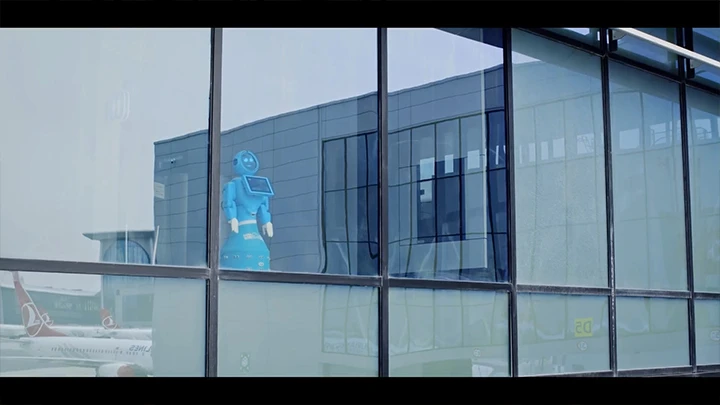

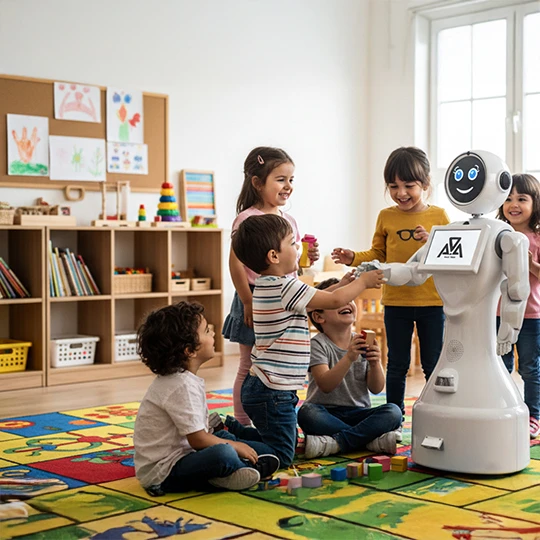

Mini ADA, which takes its place in everyday life, can be assigned in many areas such as airports, bus stations, hotels, shopping centers, stores, markets, education area, fairs, concerts, opening and celebration organizations.

 mini ada

MINI ADA FEATURES

  • Recognizes faces and people through the camera in its head.
  • Equipped with a high-resolution dynamic LED face, capable of displaying animated expressions and playing videos.
  • Uses its built-in microphone to convert spoken commands into text (speech-to-text) and provides AI-generated responses in 12 languages.
  • Moves freely with a 360-degree rotational wheel mechanism and operates at a speed of 0.6 m/s.
  • Features a 3-axis arm structure, allowing flexible movement up, down, sideways, and backward.
  • Provides environmental data such as humidity and temperature using its built-in sensors.
  • Detects obstacles and adjusts its movement with collision and fall sensors. Lidar and depth cameras enable autonomous navigation.
  • Responds to touch interaction via a touch sensor on its head.
  • Supports remote interaction through the Patron Robot application, allowing online communication between users and the robot.

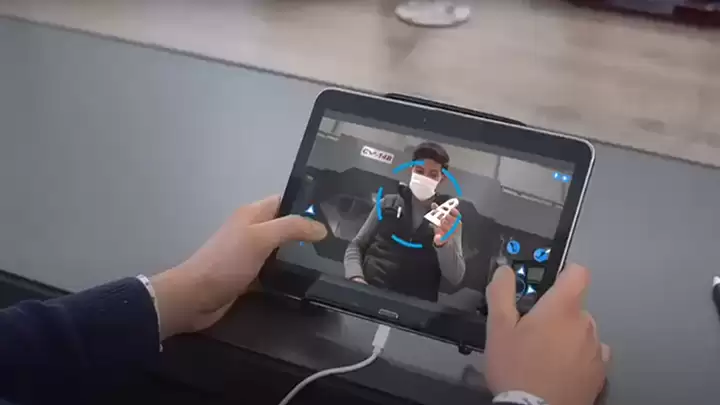

  • Can be remotely controlled via the ArMobil application.
  • The 10.1-inch touchscreen allows interaction, displaying texts, images, photos, and videos, providing product details, navigation assistance, and payment information.
  • Integrates with barcode scanning systems using its barcode reader sensor.

MINI Ada Kabiliyetler

social Robot Mini Ada Technical Features

Technical Features

Project Start Date

10.06.2018

Project End Date

13.07.2019

Weight

45 kg

Battery

Lithium-Ion

Battery Life

8 Hours

Charging Time

4 Hours

Dimensions

46 x 46 x 123 cm

Facial Display

LED Face

Autonomous Charging

Available (Optional)

Maximum Speed

0.6 m/s

Screen

10.1 Inch

Control

AR Mobile, AR-GUI

Emergency Stop

Available

Sensors

Fall Protection, Lidar, Touch Sensor

Languages

Turkish, English, Russian, Arabic, German, Spanish, Polish, Dutch, French, Azerbaijani, Georgian, Albanian
Thanks to the Omni Directional microphones on it, it filters the noise around it, detects the direction of the sound, transmits it to the artificial intelligence and performs the hearing function.
It performs vision and human recognition by detecting the depth and calculating the difference with the object through stereo vision cameras located in the head area. Recognizes faces and objects with image processing technology. It can read words written in standard fonts above a certain size.
With 2 stereo microphones; it processes questions and commands from external sources into “speech to text” and sorts them in artificial intelligence and transmits the obtained information to the user in 12 different languages.
It can walk at a speed of 50m/min by turning 360 degrees freely thanks to its 2 wheel mechanism consisting of an 'outrunner' motor, which is used to make directional movements.
With a 3-axis arm structure, it can move flexibly up, down, sideways and backwards.
Thanks to the impact and fall sensors, MINI ADA notices the obstacles around it and directs its movement. It provides autonomous navigation thanks to 2 lidars on it. It responds to tactile interaction thanks to the love sensor located in the head area.
Interacts with people through a 10.1 inches touch screen integrated into its body, displays images, photos and videos on the subject. Provides easy access to product information, location directions and payment information.

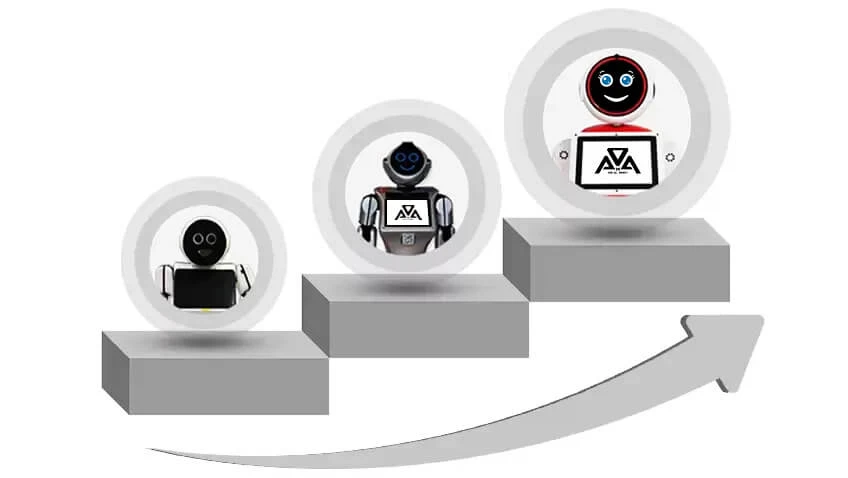

SOCIAL ROBOT MINI ADA PROJECT

Socaial Robot Mini Ada Social Robot Project

MINI ADA 3

Project Starting Date

10.06.2018

Project Ending Date

13.07.2019

MINI ADA 2

Project Starting Date

28.04.2018

Project Ending Date

10.06.2018

MINI ADA 1

Project Starting Date

21.02.2018

Project Ending Date

20.04.2018

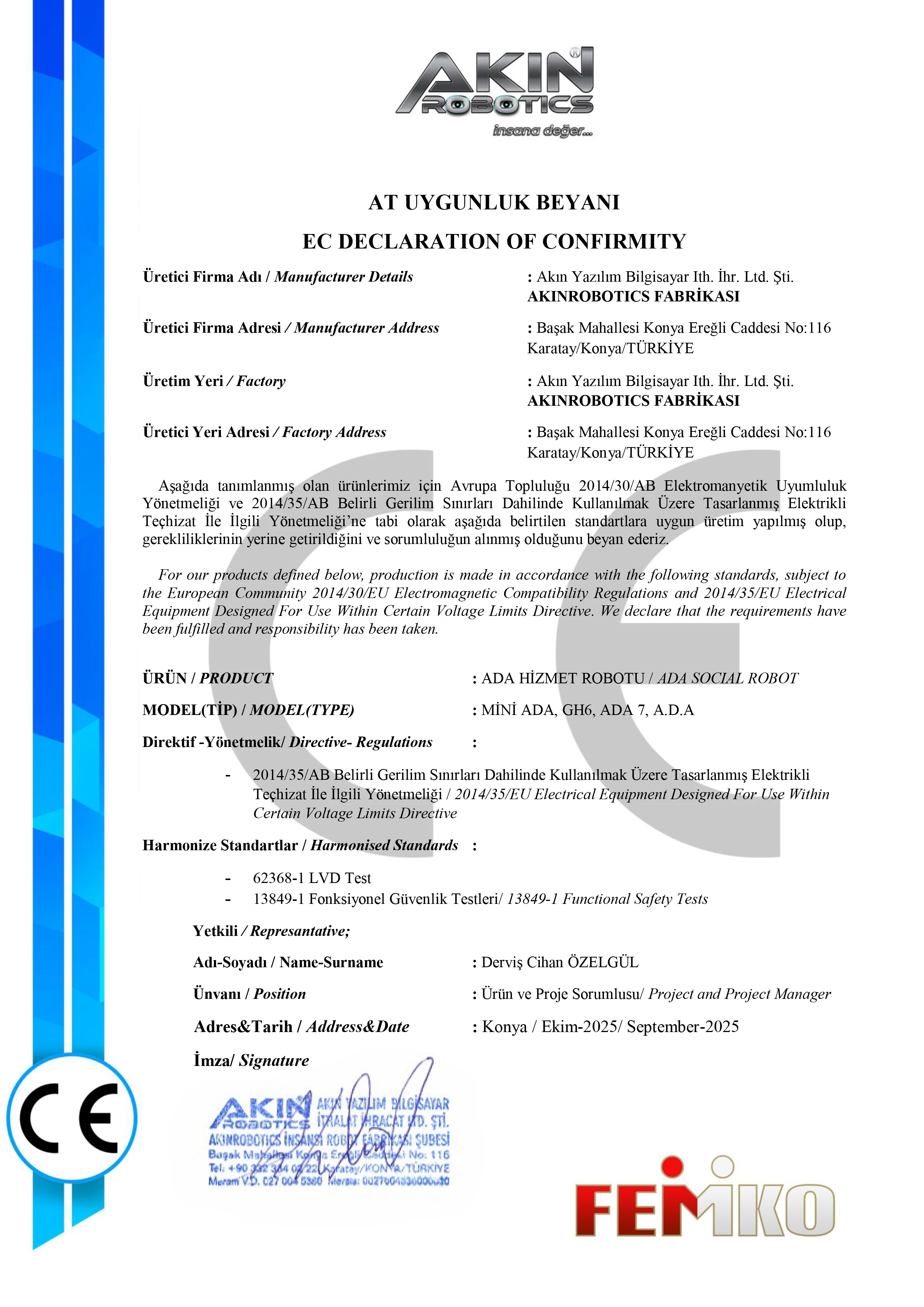

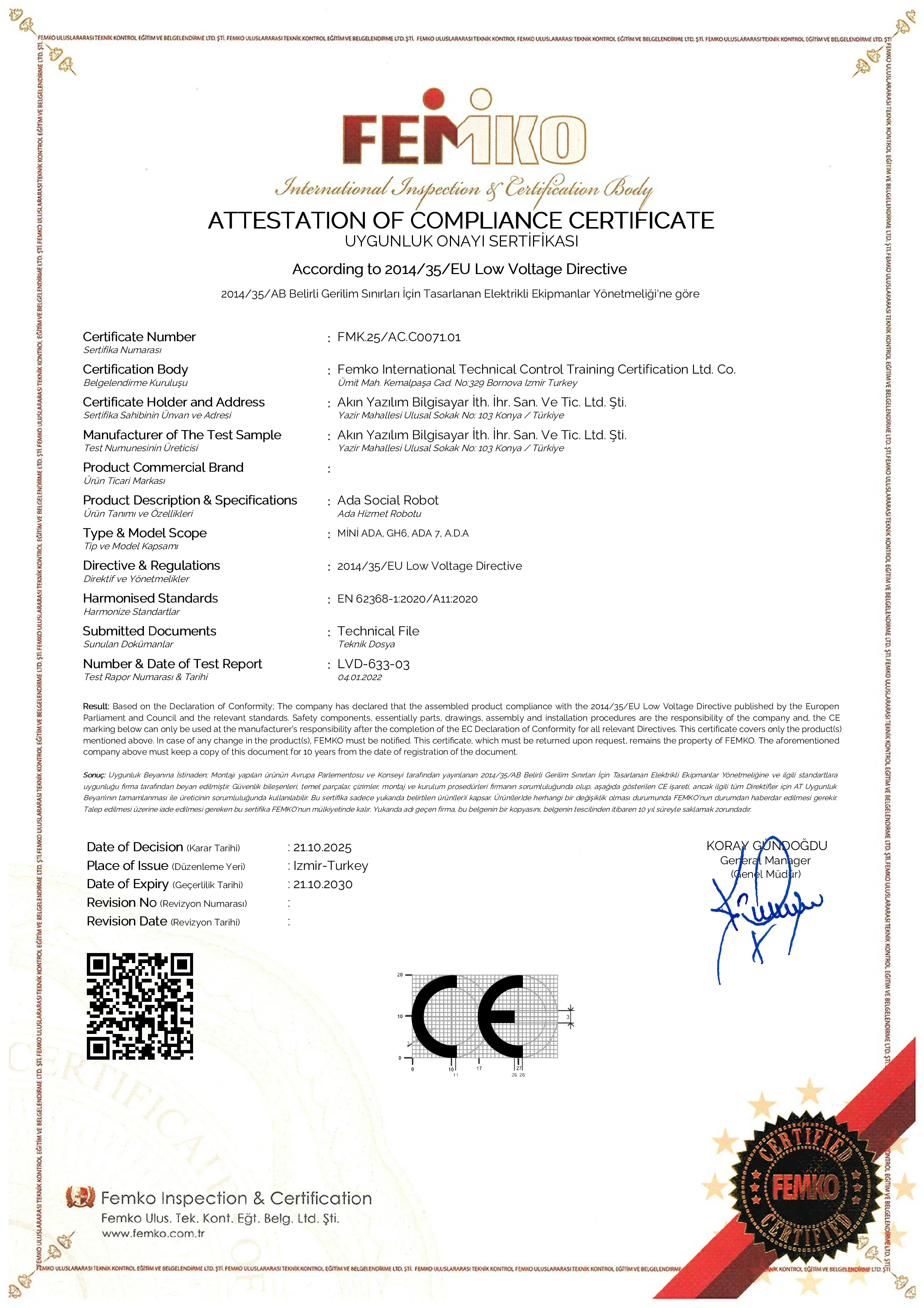

CERTIFICATION BODIES
CERTIFICATION BODIES CERTIFICATION BODIES

MINI ADA USER GUIDE
