UV-C SterIlIzatIon Robot

UV-C SterIlIzatIon Robot

Usage Areas

UV-C sterilization robots provide stable and precise disinfection in areas with high indoor and contaminated risk rates. Use of these robots; for hospital rooms and halls, theaters, cafeterias, food companies who require high sterilization, gyms, playgrounds and many more industry offered as the solution.

ShoppIng Malls

ShoppIng Malls

Movie theaters, shops, food and beverage areas, playgrounds and common areas.

Banks

Banks

Counters, waItIng areas, workspaces, common areas, etc.

EntertaInment Centers

EntertaInment Centers

Wedding halls, indoor concert venues, stadiums, entertainment venues, playgrounds.

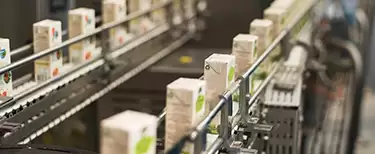

Food ProductIon FacIlItIes

Food ProductIon FacIlItIes

Factories, production and storage areas, social facilities.

Health and Beauty centers

Health and Beauty centers

Intervention rooms, waiting rooms, equipment and common areas.

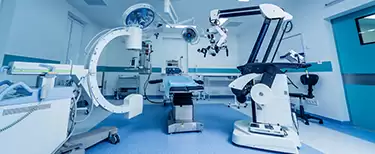

Hospitals and LaboratorIes:

Hospitals and LaboratorIes:

Operating rooms, emergency rooms, polyclinics, waiting areas, etc.

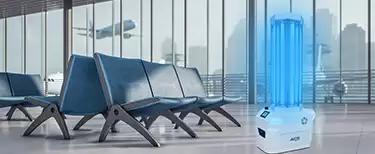

AIrports, TraIn StatIons, and Bus StatIons

AIrports, TraIn StatIons, and Bus StatIons

Sales and information offices, waiting rooms, terminals, workspaces, shops, food and beverage areas, common areas, etc.

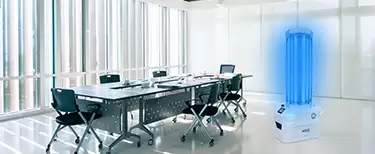

OffIces and Workspaces

OffIces and Workspaces

Study rooms, public areas, meeting rooms, corridors,

Schools

Schools

Classrooms, laboratories, public areas, etc.

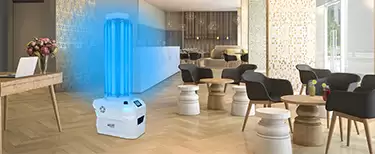

Hotels

Hotels

Rooms, dining halls, common areas, reception and waiting rooms, playgrounds, gyms, organization areas, etc.

Restaurants

Restaurants

Kitchen, tables, service areas, etc.

Sports Halls

Sports Halls

Common halls, equipment, common areas.

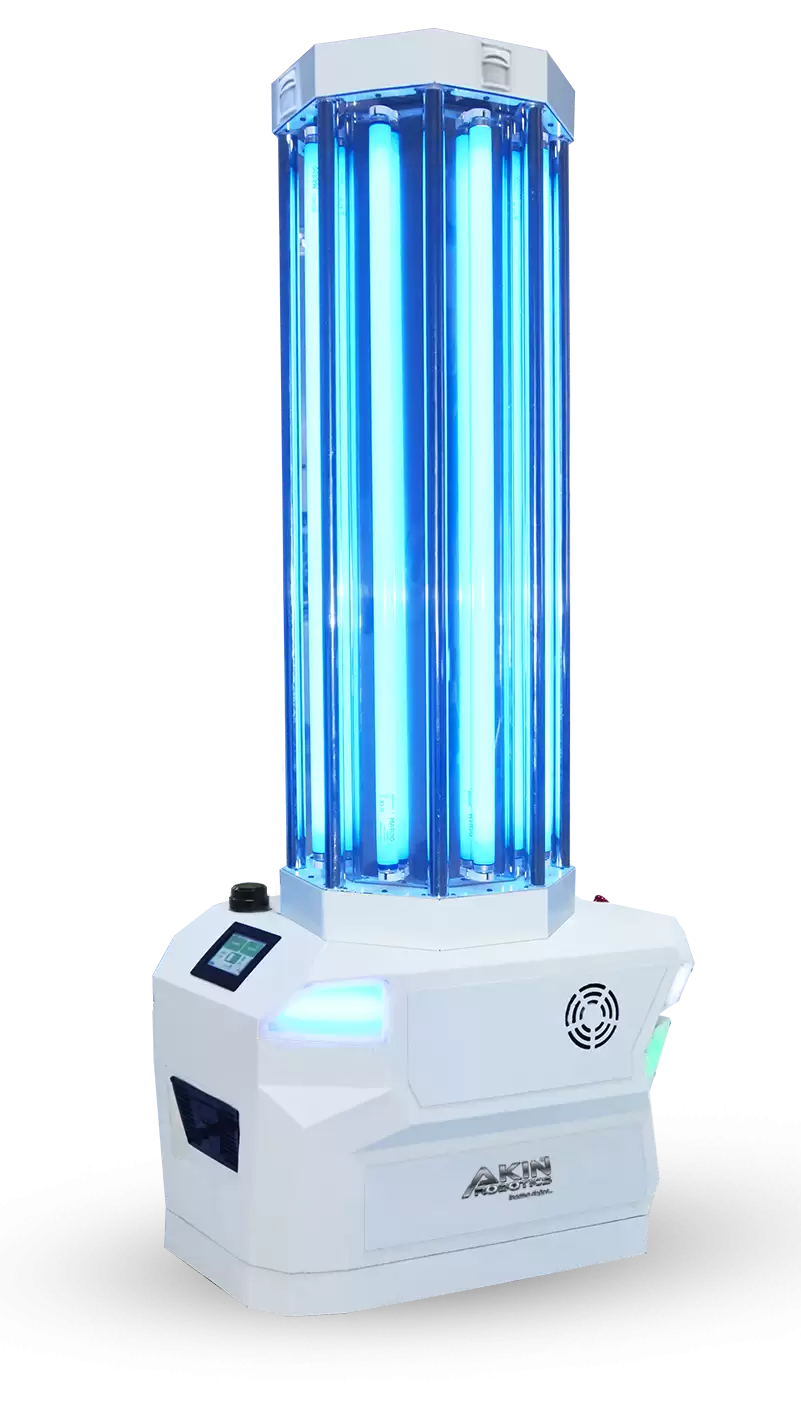

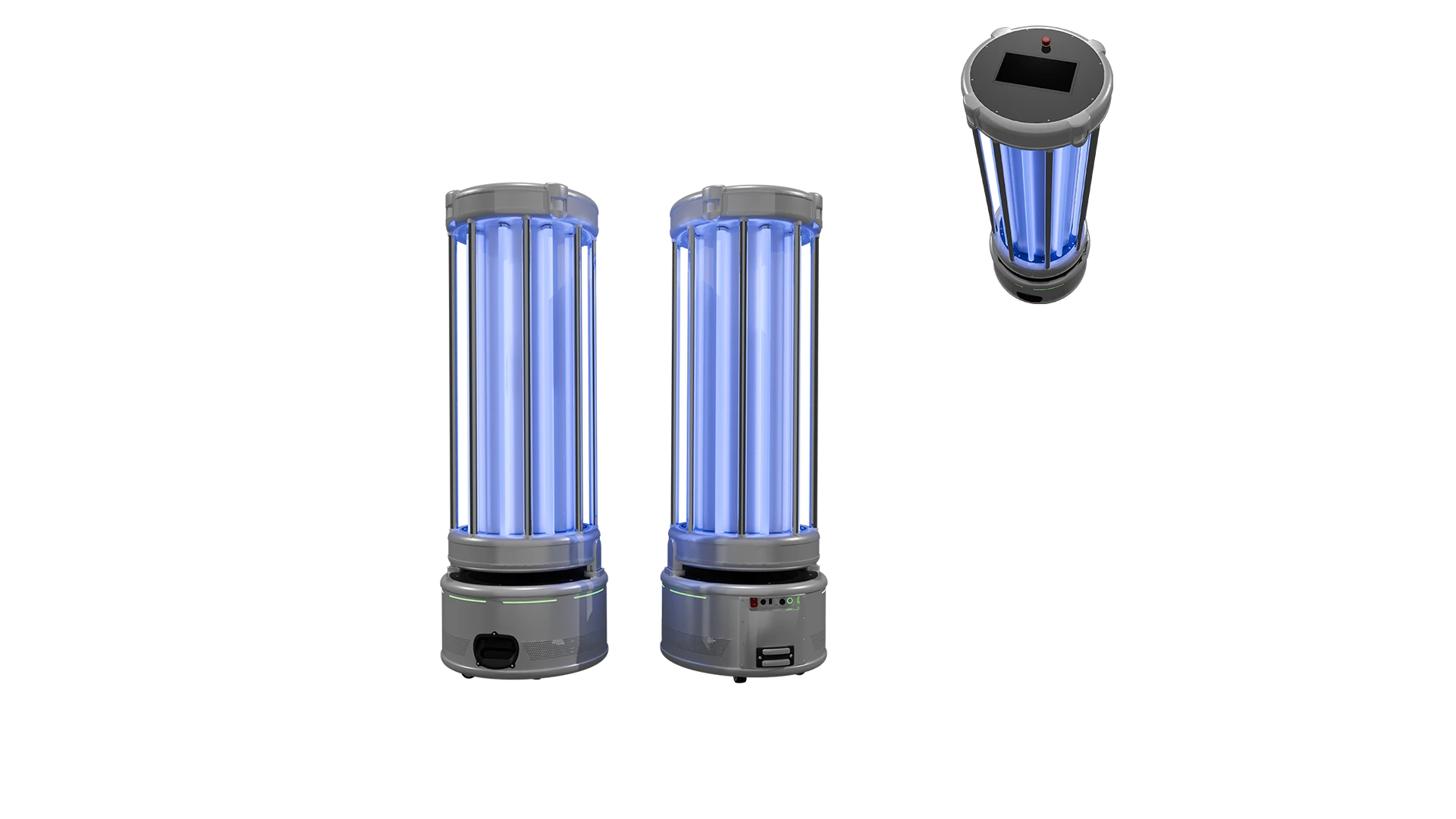

UV-C SterIlIzatIon Robot
  • Audible Warning System

    It warns audibly before and after the sterilization process or when a moving object is detected.
  • 8 UV-C Fluorescents

    It provides sterilization with 8 UV-C fluorescents with a wavelength of 254 nm and a 360 degree effect area.
  • Information Screen

    It is the screen where many information such as the charging capacity of the device and the lamp life are displayed.
  • Status Lights

    Thanks to the LED lights on it, it turns green when active and red when it detects an obstacle.
  • Lidar-Autonomous NavIgation

    Thanks to LIDAR, it detects and maps the surrounding objects and provides autonomous navigation.

With our UV-C Sterilization Robot, you can provide a safe and healthy environment to your staff and customers.

  • Allows sterilization outside of work hours by scheduling the date and time, with no human workforce required.
  • Operates on an autonomous system with mapping technology. Using the autonomous navigation feature, the robot can move around and perform tasks without colliding with obstacles.
  • Performs sterilization to eliminate all bacterial and viral growth in the environment, providing approximately 7 days of sterilization assurance.
  • Features a voice and light warning system before starting work, warning people in the area and beginning the countdown to start the process, ensuring the safety of living beings.
  • During operation, if any movement is detected in the environment, the UV-C lamps are automatically turned off. The task ends with a voice and light warning system once completed.
  • The robot plans its tasks based on the current charge/power balance. If it calculates that it cannot complete the sterilization in the area, it will not start the process. Instead, it goes to the charging station to recharge, then continues the sterilization process.
uv-c Technical Features

UV-C Sterilization Robot Technical Features

UV Wavelength

254 nm (UV-C)

UV Coverage Area

360°

Voice Warning System

Available

Battery

Lithium Ion

Battery Life

8 Hours

Charging Time

4 Hours

UV Fluorescent Tubes

90 cm - 8 units

Weight

54 kg

Dimensions

40 x 60 x 143 cm

Sterilization Time

15 minutes (30m²)

Maximum Speed

0.5 m/s

Autonomous Charging

Available

Autonomous Navigation

Available

Control

AR-GUI

Emergency Stop

Available

Sensors

Lidar, Fall Protection, Human Detection

Voice Notification Languages

English, Turkish

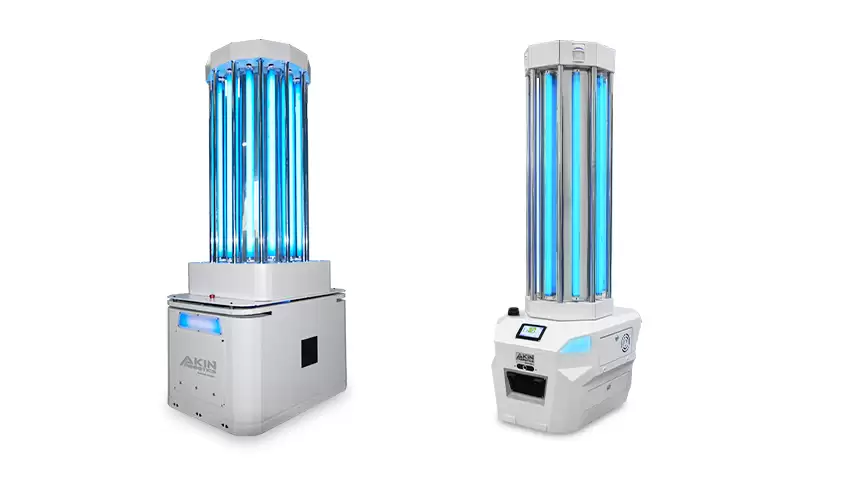

UV-C STERILIZATION ROBOT PROJECT

UV-C STERILIZATION ROBOT project

UV-C STERILIZATION ROBOT-2

Project Starting Date

20.08.2020

Project Ending Date

10.04.2021

UV-C STERILIZATION ROBOT-1

Project Starting Date

06.06.2020

Project Ending Date

30.07.2020

UV-C STERILIZATION ROBOT- USER GUIDE
