AKINOID DEVELOPMENT CARDS

It is a software development platform that includes micro hardware controllers of ST firm on electronic circuits which we call development cards, with various hardware added. In the computer environment, you can program the microcontroller using STM32 compilers such as KEIL, IAR, ECLIPSE or TRUESTUDIO.

Development boards with various pin configurations and hardware features are used to control any electronic circuits, implement communication protocols and develop software in embedded systems. It is a design that can be used easily for those who want to develop software with input and output pins, interface connection with the help of usb and 5v feeding features.

It is a ready-made product with smd assemblies for new software developers to use arm based microcontrollers. It is suitable for all kinds of open source coding.

In today's technology, instead of slow processing capacity and high costs, arm-based processors with higher speeds and affordable costs have become widespread in the market. It has become especially important for engineers to use this platform to keep up with this technology.

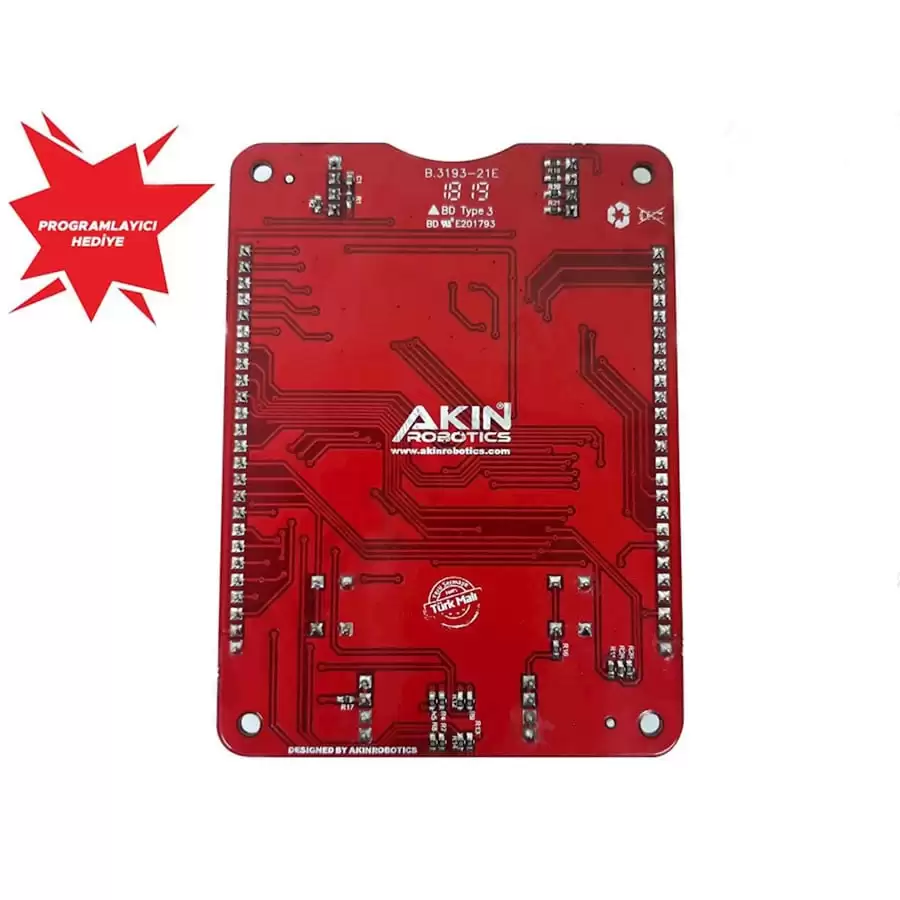

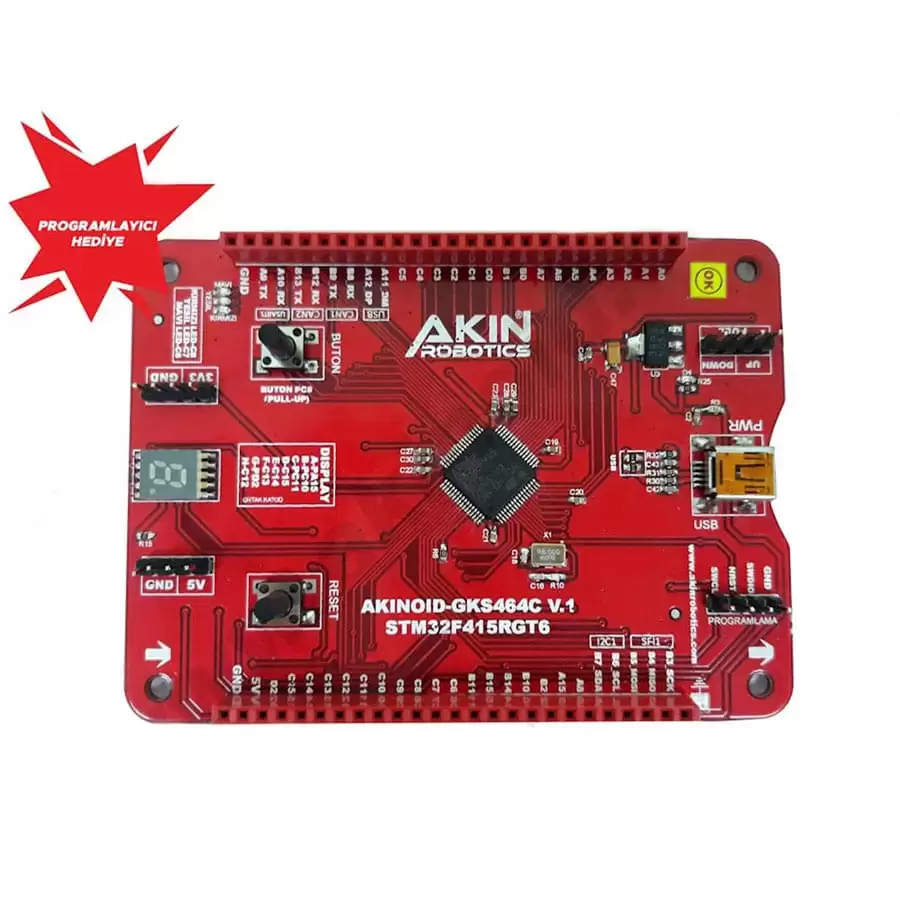

AKINOID-GKS464C
(COMES WITH PROGRAMMER AS GIFT)

BUY

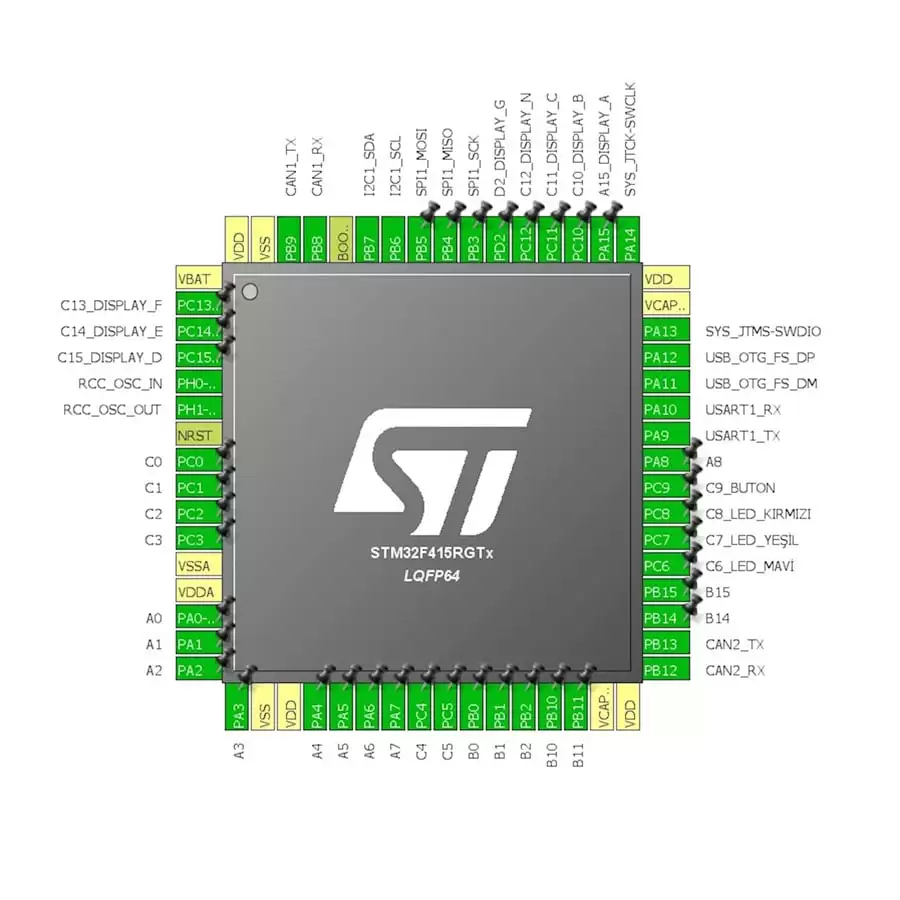

MICROPROCESSORSTM32F415RGT6
ARM®Cortex®32-BİT M4
ADC (PROCESSOR)3
MICROPROCESSOR SPEED168 MHZ
I/O (BOARD)47
SRAM (PROCESSOR)192+4 KB
CRYSTAL (BOARD)8 MHZ
TIMER (PROCESSOR) 17
FLASH (PROCESSOR)1 MB
OPERATING VOLTAGE (USB)(BOARD)5 V
ADDITIONAL FEATURE 1 (BOARD)7 SEGMENT DISPLAY
ADDITIONAL FEATURE 2 (BOARD)BUTON+3 LED
ADDITIONAL FEATURE 3 (BOARD)INTERFACE
ADDITIONAL FEATURE 4 (BOARD)PULL UP/DOWN

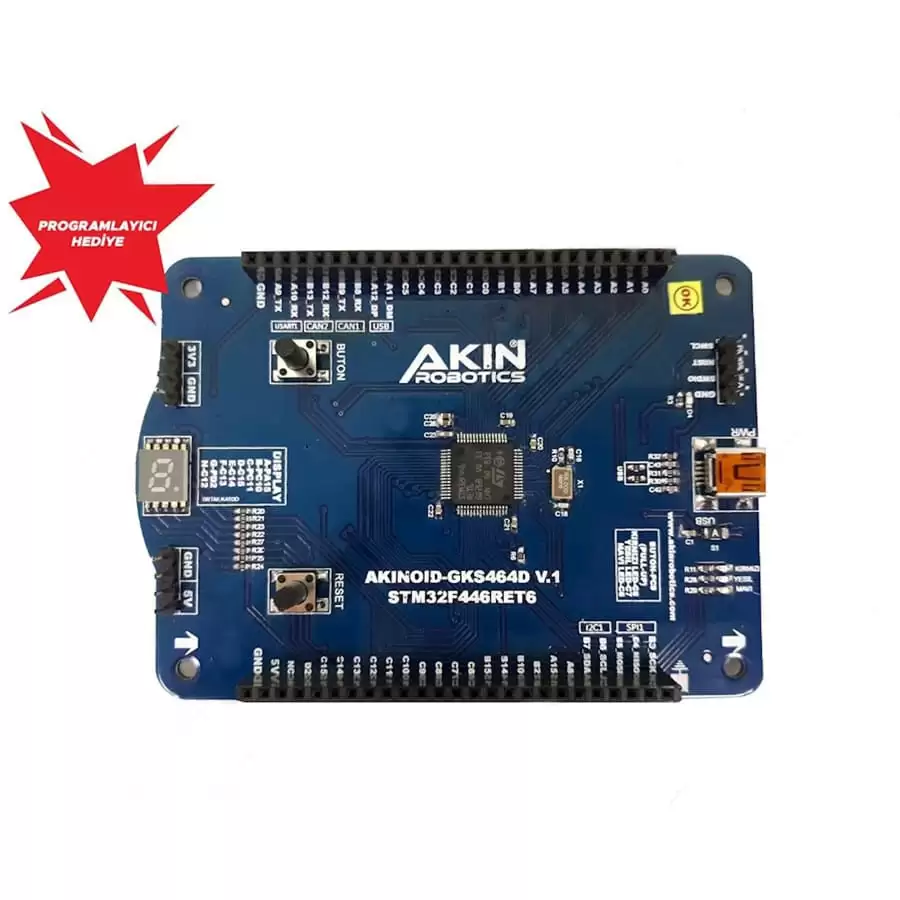

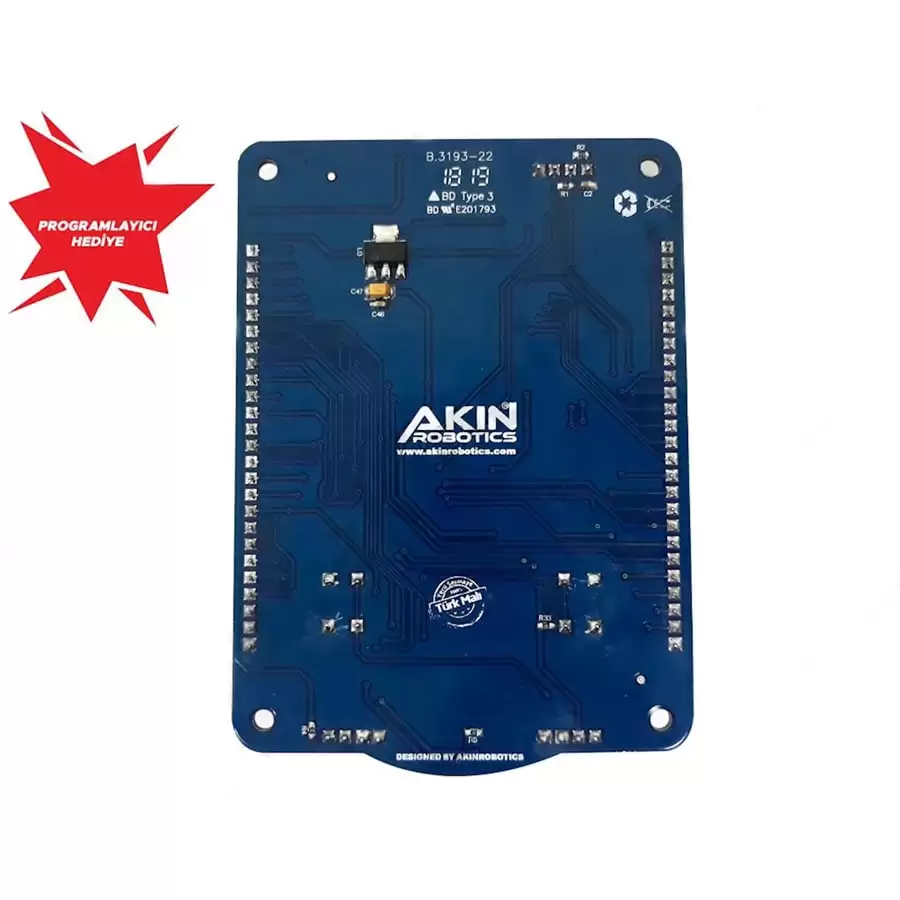

AKINOID-GKS464D
(COMES WITH PROGRAMMER AS GIFT)

BUY

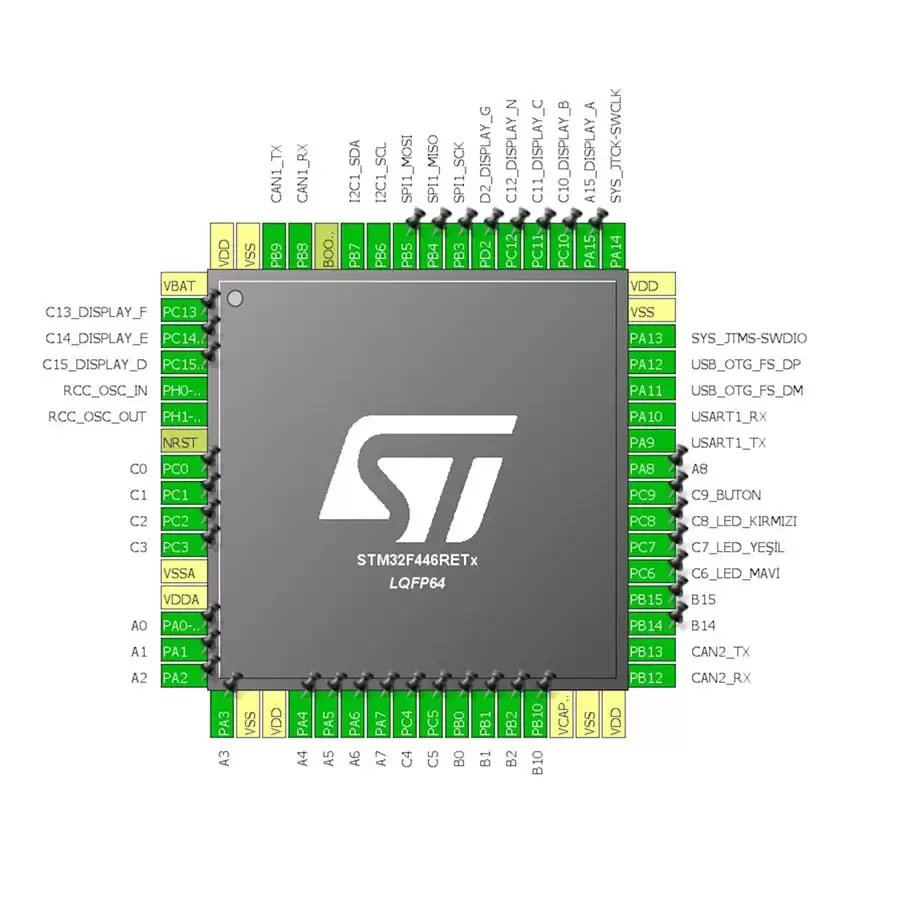

MICROPROCESSORSTM32F446RET6
ARM®Cortex®M4
ADC (PROCESSOR)3
MICROPROCESSOR SPEED180 MHZ
I/O (BOARD)46
SRAM (PROCESSOR)128 KB
CRYSTAL (BOARD)8 MHZ
TIMER (PROCESSOR) 17
FLASH (PROCESSOR)512 KB
OPERATING VOLTAGE (USB)(BOARD)5 V
ADDITIONAL FEATURE 1 (BOARD)7 SEGMENT DISPLAY
ADDITIONAL FEATURE 2 (BOARD)BUTON+3 LED
ADDITIONAL FEATURE 3 (BOARD)INTERFACE
ADDITIONAL FEATURE 4 (BOARD)PULL UP/DOWN

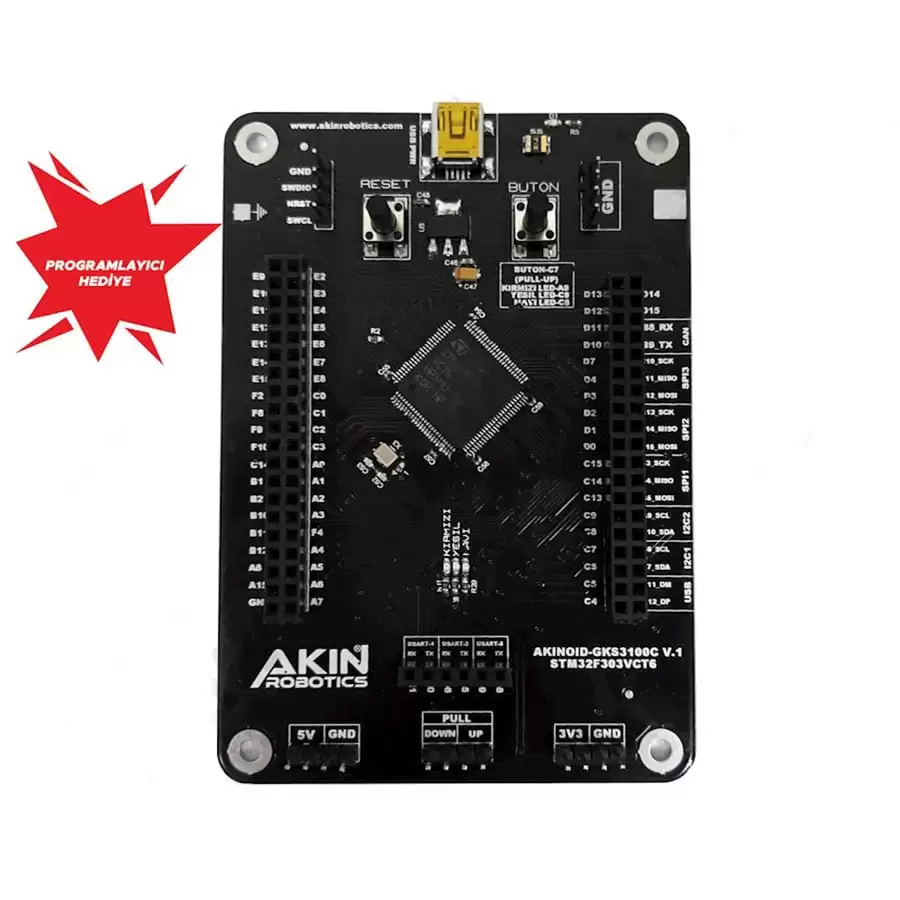

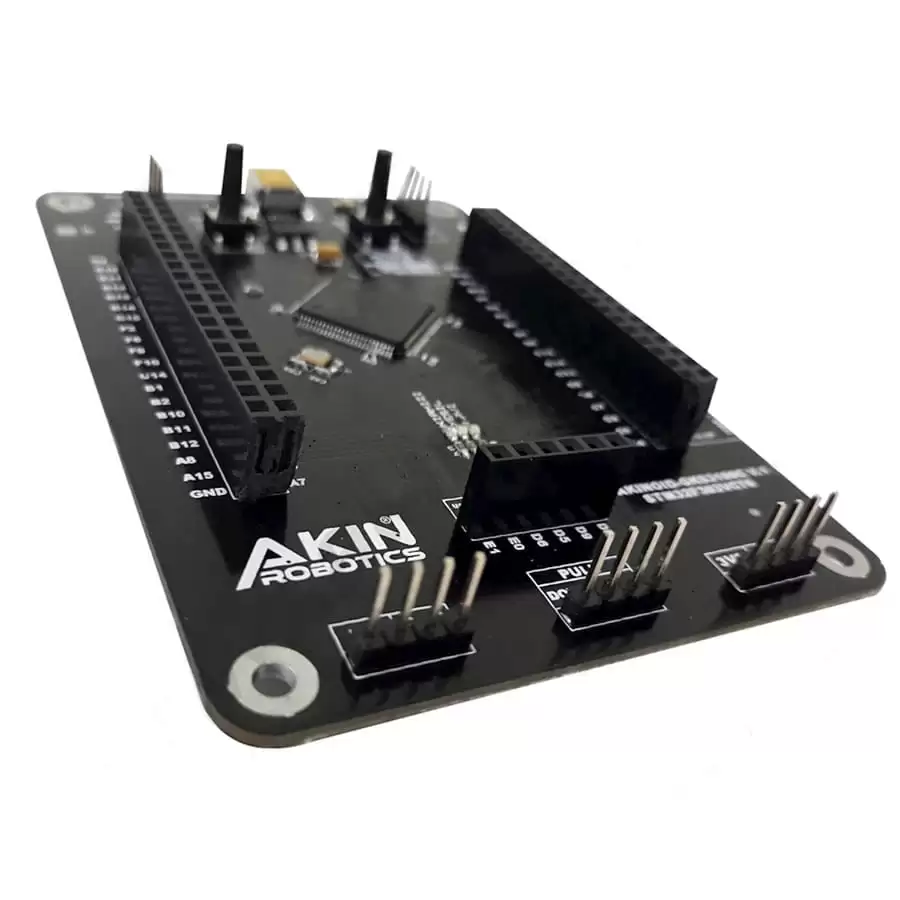

AKINOID-GKS3100C
(COMES WITH PROGRAMMER AS GIFT)

BUY

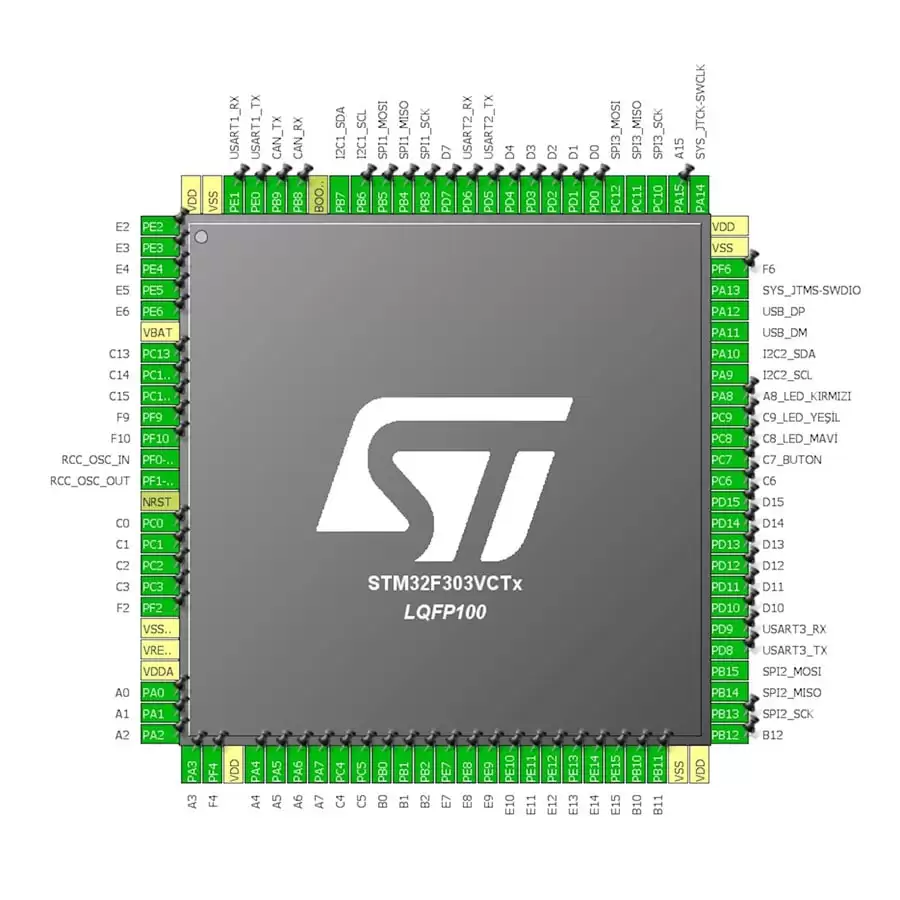

MICROPROCESSORSTM32F303VCT6
ARM®Cortex®32-BİT M4
ADC (PROCESSOR)4
MICROPROCESSOR SPEED72 MHZ
I/O (BOARD)83
SRAM (PROCESSOR)192+4 KB
CRYSTAL (BOARD)8 MHZ
TIMER (PROCESSOR) 17
FLASH (PROCESSOR)1 MB
OPERATING VOLTAGE (USB)(BOARD)5 V
ADDITIONAL FEATURE 1 (BOARD)PULL UP/DOWN
ADDITIONAL FEATURE 2 (BOARD)BUTON+3 LED
ADDITIONAL FEATURE 3 (BOARD)INTERFACE
