ARAT Quadruped Robot

Quadruped robot ARAT; It has been designed as a field robot and continues to work at a level that can adapt to rough conditions. Thanks to its stability protection algorithm, it can reach its target without tipping over in rough terrain conditions, on ramps, and on stepped floors. Even if it falls over the force that it can withstand, it can stand up on its own and continue on its course. The sensors on it classify the obstacles and can provide impact protection even in environments with moving objects.

quadruped Robot ARAT Kabiliyetleri

ARAT 4.2 FEATURES

  • All motors used in the robot have been designed and manufactured in-house.
  • It can be wirelessly controlled for remote operation.
  • Offers a wide range of motion for flexible movement.
  • Equipped with an advanced Balance Protection Algorithm, allowing it to walk on rough terrain without falling.
  • Features four legs, each consisting of three joints.
  • Capable of walking, running, and climbing steps for exploration purposes.
  • Performs real-time kinematic calculations.
  • The integrated camera enables autonomous object tracking, real-time image transmission, and strategic dynamic obstacle avoidance based on image processing.
  • Uses a Lidar sensor for mapping and executing autonomous tasks.
  • With its 9 kg load capacity, it can be deployed for search and rescue operations in challenging terrains.
quadruped robot arat TECHNICAL SPESIFICATIONS

TECHNICAL SPESIFICATIONS

Project Start Date

26.10.2020

Project End Date

Ongoing

Weight

27 kg

Battery

Lithium-Ion

Battery Life

8 Hours

Charging Time

4 Hours

Dimensions

44 x 75 x 58 cm

Number of Joints

12

Number of Sensors

67

Maximum Load Capacity

9 kg

Maximum Speed

1.8 m/s

Control

AR Mobile, AR-GUI

Emergency Stop

Available

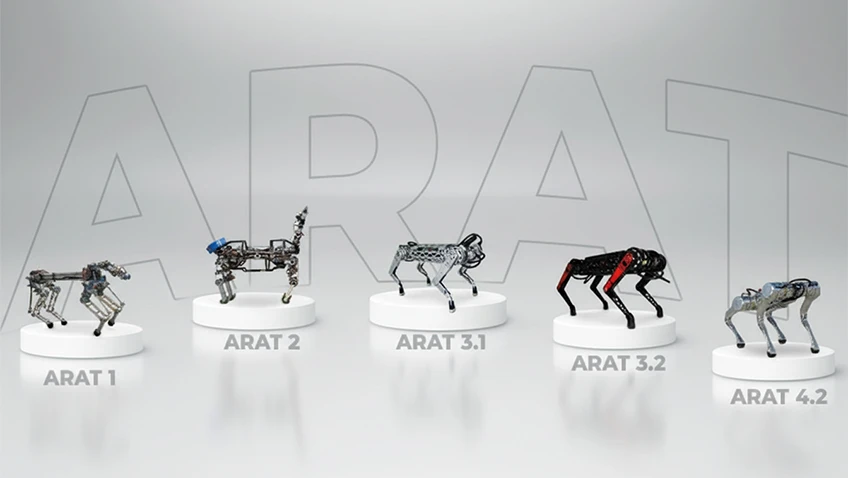

QUADRUPED ROBOT ARAT PROJECT

quadruped Robot ARAT project

ARAT 4.2

Project Starting Date

26.10.2020

Project Ending Date

Ongoing

ARAT 3.2

Project Starting Date

01.06.2020

Project Ending Date

26.10.2020

ARAT 3.1

Project Starting Date

27.04.2019

Project Ending Date

01.06.2020

ARAT 2

Project Starting Date

26.02.2019

Project Ending Date

27.04.2019

ARAT 1

Project Starting Date

14.04.2018

Project Ending Date

23.01.2019
